The Diamond Pier foundation system is becoming one of the most popular choices for fast, clean, and durable construction-especially for garden houses, backyard structures, decks, light buildings, and outdoor projects. Its speed, strength, and ease of installation make it ideal for contractors who need to meet tight deadlines without compromising structural stability. However, to maximize the load-bearing capacity and long-term durability of Diamond Pier foundations, it’s crucial that installation teams follow the correct procedures and avoid common mistakes that can weaken the structure.
This comprehensive guide walks you through everything from preparing materials and tools, performing each installation step, evaluating soil conditions, to checking quality after completion.
Why Diamond Pier Foundations Are So Widely Used?
Exceptional durability
A Diamond Pier foundation consists of a high-strength precast concrete head combined with four galvanized steel pins driven diagonally into the ground. Thanks to this “tree-root” anchoring mechanism, the foundation grips multiple soil layers, creating excellent stability even on soft or uneven ground.
The hot-dip-galvanized steel pins are highly resistant to rust and corrosion, giving the system a long service life-often lasting several decades in outdoor environments.
Fast installation
A single Diamond Pier foundation typically takes very little time to complete. That’s 5-7 times faster than traditional digging, forming, and pouring concrete footings. There’s no curing time, no need for large crews, and weather conditions have minimal impact. This speed advantage is a major reason why the system is preferred for projects that require immediate progress or early handover.
Cost-effective
Because Diamond Pier installation requires no heavy machinery, no excavation, and minimal labor, overall project costs drop significantly. The absence of soil removal and backfilling also reduces disposal and transportation expenses, saving project owners an additional 30-50% compared to traditional footings.
Materials and Tools Required
Precast Diamond Pier concrete head
This is the signature precast concrete block shaped like a diamond with built-in guide holes for the steel pins. Depending on the version (Ver1 or Ver2), dimensions and weight vary to match the load capacity.
Four galvanized steel pins
These steel pins typically have a diameter of D48 or D60, with lengths ranging from 1.2 to 1.5 meters. Hot-dip galvanization protects them from oxidation even in moist soil.
Essential installation tools
- A pin-pounding machine or specialized driving hammer
- Depth-measuring gauge
- Laser level or water level
- Tools for aligning and positioning the foundation
Having the correct tools ensures precise installation and faster workflow.
Step-by-Step Installation Guide
Step 1 – Surveying and marking the foundation positions
Centerline alignment
Diamond Pier foundations achieve maximum efficiency only when installed at the correct load-center point. Use a laser level or taut string lines to identify and mark the exact centerlines according to the construction plan.
Recommended spacing based on load
- Light wooden houses: 1.2-1.5 m
- Decks and outdoor flooring: 1-1.2 m
- Heavier structures: 0.8-1 m
The closer the spacing, the more evenly distributed the load will be across the structure.
Step 2 – Positioning the concrete head
Clear grass, rocks, or debris from the installation area. Place the Diamond Pier concrete head on the marked position. Excavation is not required—just ensure the bottom surface sits flat and evenly on the ground.

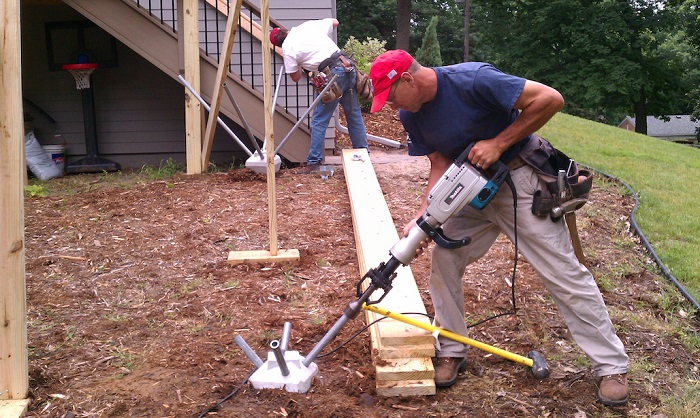

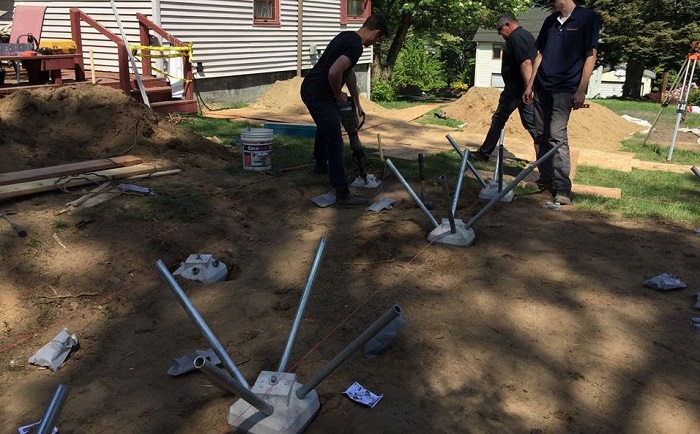

Step 3 – Driving the steel pins at a 25-45° angle
Insert each steel pin into the pre-cast guide holes. Use a driving machine to pound the pins into the ground at the correct diagonal angle.
The angled configuration provides superior load distribution compared to conventional vertical piles.
Important notes:
- Do not change the pin angle
- Do not force the pin into the wrong guide hole
- Ensure all four pins create uniform anchoring force
Step 4 – Verifying pin depth
Each pin must reach the required depth based on soil type and foundation version (typically 60-90 cm). Use a depth gauge to confirm all pins are fully embedded and have not hit solid obstacles.

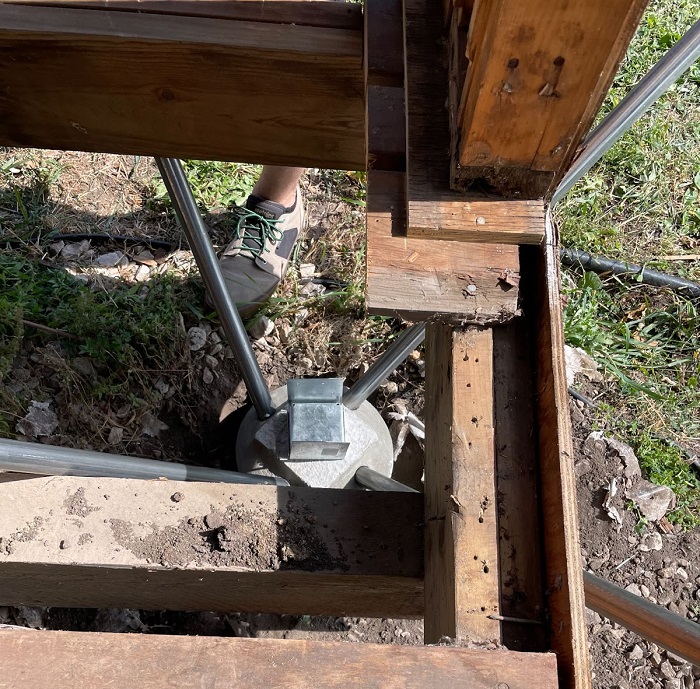

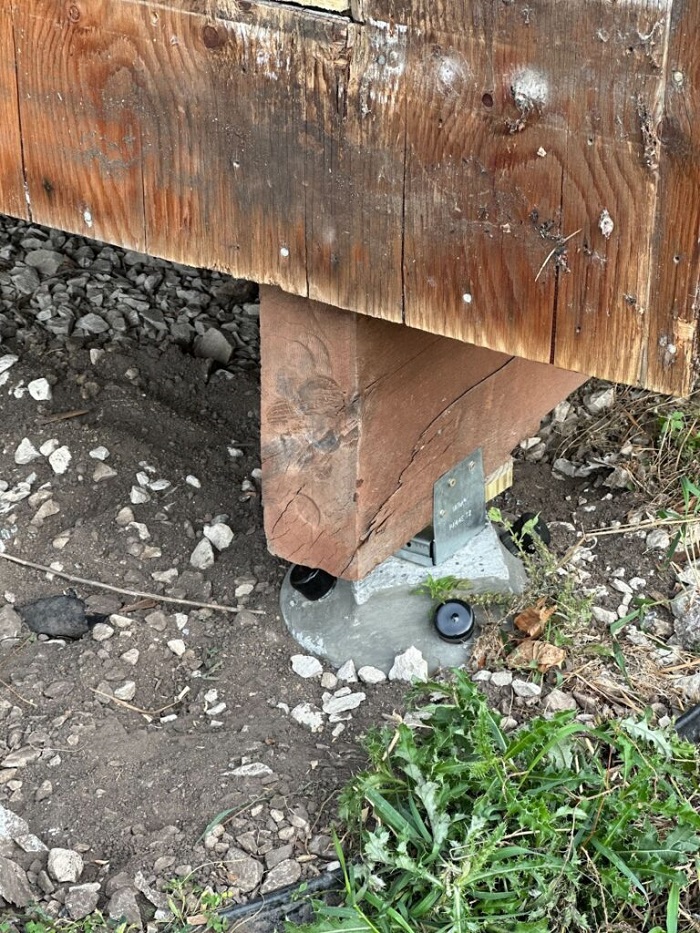

Step 5 – Installing beams and the upper structure
Once the pins are fully driven, attach bolts and connect the main beams. The foundation can now bear load immediately, allowing you to proceed with framing, steel structures, or wooden platforms without waiting.
Important Considerations During Installation
Proper installation depends heavily on soil conditions and the structural load requirements. Below are key recommendations for different scenarios.
For soft or weak soil
Soft ground can cause uneven settlement if not handled correctly.
- Increase the number of foundations or reduce spacing to distribute weight more evenly.
- Use higher load-capacity versions of the Diamond Pier system to improve stability.
- Carefully inspect pin depth to ensure each pin reaches soil layers capable of supporting the load.
For sloped or hilly terrain
Sloped soil demands additional adjustments to maintain balance.
- Adjust beam height to achieve a level final platform.
- Do not install foundations directly on exposed bedrock, as it prevents proper anchoring. Move the foundation to areas with better soil adhesion.
For heavy-load projects
High load requirements call for enhanced anchoring performance.
- Use Ver2 foundation models designed to handle 6-10 tons of load.
- Increase the density of foundations under main beams where load concentration is highest.
- Avoid placing excessive load on a single point to prevent structural imbalance.
Common Mistakes to Avoid
Even minor errors can cause long-term structural problems.
- Misaligned foundation centerlines can cause tilting or imbalance
- Uneven pin driving reduces anchoring force
- Insufficient pin depth lowers the actual load capacity
- Driving pins too quickly may bend them, reducing lifespan and strength
Post-Installation Quality Checks
Check structural connections
Ensure bolts, beams, and the concrete head are tightly connected with no gaps.
Check for vibration
Lightly shake the upper structure to test for movement. If vibration occurs, recheck pin depth.
Confirm load capacity
Verify that the number of foundations and the model used match the project’s calculated load. Add extra foundations if necessary before proceeding with final construction.
ABL-Van Phuc: 24/7 Technical Support for Installers and Investors
Video tutorials
ABL provides step-by-step videos for pin installation, alignment, and beam connection.
Standard layouts
We offer layout drawings for wooden houses, homestays, temporary structures, steel platforms, decks, and shipping container setups.
Load-capacity consultation
Our technical team can help evaluate real-world load conditions and recommend optimal spacing to minimize material waste while maximizing safety.
Conclusion
Installing a Diamond Pier foundation is a straightforward process, but precision is essential to achieving maximum performance. When done correctly, Diamond Pier offers outstanding load capacity, rapid installation, and significantly lower costs compared to traditional footings. It is an ideal solution for outdoor structures, garden homes, and projects requiring fast timelines.
